一、Features

1. Sweden PROFLUTE silicon gel and molecular sieve compound wheel，high dehumidification efficiency, output air dew point can achieve below -60℃, while RH≤1%.

2. High strength aluminium alloy frame, anti-cold bridge

3. Machine body adopts international fashionable modularization design, foam injected double wall casing, excellent heat and humidity isolation, no dew forming, bottom boards and water pan is made of stainless steel.

4．PLC automatic control system, human-machine interface, all the parameters can be on-line checked, insuring the operation reliability of the equipment.

5. Electric or steam heating or convert type can be available

6. Matching with refrigeration compressor system, with direct evaporative heat exchanger

7. We can provide technical design for dehumidification according to customers’working condition

二、Details

Functional Buildup:

1. air filtration(pre-filter, medium filter, HEPA filter can be chosen according to cleanness grade)

2. Pre-cooling, mixture cooling, post-cooling

3. Wheel dehumidification(including wheel, drive motor, regeneration fan, regeneration heating system etc.)

4. Fresh, reflow air first mixture and second mixture

5. Refrigeration compressor

6. Electric control system

Above functions can be adjusted according to technics flow

Specification:

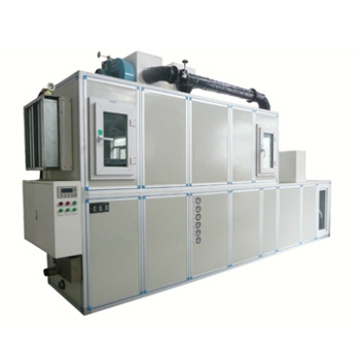

ZCH series low dew point dehumidifier consists of rotary wheel dehumidifier and direct evaporative refrigeration system. With special ductwork design, it can achieve normal temperature and low humidity efficiency through controlling the output air temperature. After being cooled and dehumidified in the pre-cooling process, the process air goes across the compound wheel for further dehumidification, achieving low humidity efficiency, then the air is discharged into certain room by fan after being cooled in post-cooling process. We can provide technical design for dehumidification according to customers’ requirements.

Our company can carry on turkey project about dehumidification system including clean dry room and air pipe ductwork and provide consultation, drawing design, manufacturing, installation, adjustment and maintenance etc. a full range of service contains pre-sale, in-sale and after-sale service.
