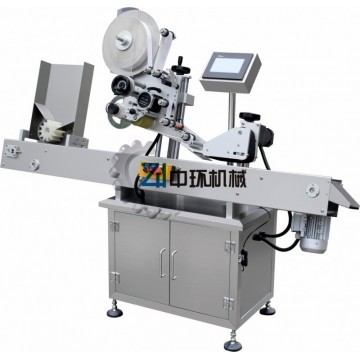

ZHTBW01 Horizontal Around Bottle Labeling Machine

Usage:

It is used for automatic labeling and printing different bottles in pharmacy industry such as ampoule bottle, vial bottle, oral bottle and so on.

Features:

Use bottle dialing device to separate the bottles. It only needs to change the bottle dialing roller when bottles are changed. One machine can be used for different sizes of bottles.

Roller chain conveyor ensures accurate and stable labeling.

Intuitive and user friendly touch screen makes the operation easy.

Intelligent label control and error warning functions.

Unique bottle breaking proof technology.

World renowned brands of electrical components ensures the stable and reliable performance.

Optional coder or ink jet printer realize the information printing while labeling.

 Specifications:

Labeling speed: 200-300bottle/min.(Varies with the different sizes of substrates or label)

Labeling accuracy:?0 .5mm (Excluding the error of substrate and label)

Bottle diameter: 0-22mm or 18-30mm

Power and power supply: AC220V ?5% 50Hz 1200W

Dimensions: 1800mm(L) x700mm(W)x1500mm(H)
