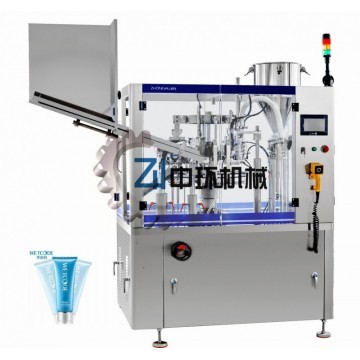

ZHF-100YC Tube filling & sealing machine

Multi-color filling

Special tube filling

Special-shaped sealing

Compact design and auto tube feed. Driving part fully-closed.

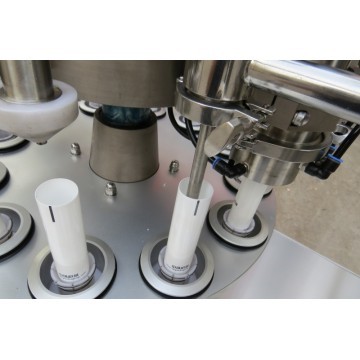

Tube washing and feeding marking identification, filling, folding, sealing, code printing and finished product output all conducted by a fully auto control system.

Tube washing and feeding conducted pneumatically, accurate and reliable.

Key Features

Compact Design

Driving Parts Fully-closed

Pneumatic Tube Washing & Feeding

Intelligent Temperature Control and Cooling System

Easy to Operate and Adjust

316L Stainless Steel Contact Parts to meet GMP Standard

Safety Interlock Shutdown when Door is Open

Overload Protection Provided

Automated Working process from Tube Loading to Finished Products Output

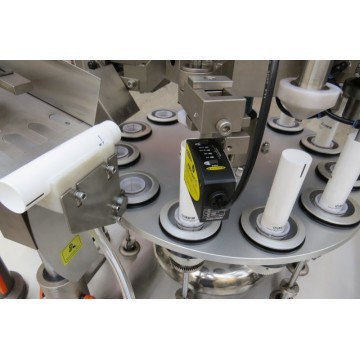

Automatic Orientation Effected by Photoelectric Induction

Optional Devices

Chiller

Date Coding Embossing

Automatic Tube Feeding Magazine

Change Parts

Technical Parameters

Filling volume: 1-400ml/unit (Adjustable)

Filling accuracy: ≦±0.5﹪

Capacity: 4000-4800unit/hour, Adjustable

Tube diameter: Φ10-60 mm

Tube length: 50-240mm

Hopper volume: 40L

Power: 380V/220V (Optional)

Air pressure: 0.4-0.6 MPa

Machine power: 9kw
