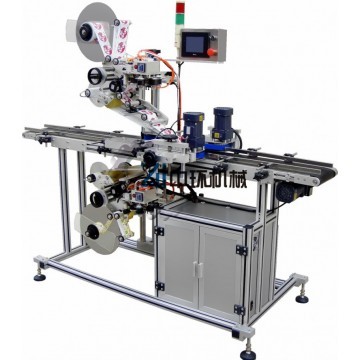

ZHTBS01 Top And Bottom Sides Automatic Labelling Machine

Category:Pharmaceutical Packaging Machinery > Labelers, Label Printers
Product Name:ZHTBS01 Top And Bottom Sides Automatic Labelling Machine
Price(USD):0.00
Company:WENZHOU ZUNGWAN INTELLIGENT MACHINE CO.,LTD

Send Inquiry

Favorites

Similar Products

RH1 High Speed Horizontal Tray Inserter

HiPack Cold-Form Aluminum Foils

HiPack Complex Laminated Flexible Films

A210 Horizontal Labeling System for Prefilled Syringes

Integrated Syrup Bottle Inspection and Labeling Line

Single/Double-sided Labeler DTB160/S　STB160/S

Roll to Roll Labeling Machine

A204R Battery Labeling System

Single Side Labeling Machine

Shanghai Wanshen HDZ 100BZ Automatic Cartoning machine

Basic Info

Factory Location: NO.50, Wenjin Road,High-Tech Development Zone,Wenzhou,China

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Asia
Monthly Production Capacity: 10set/month
Delivery Lead Time: one month

Sample Provided: no

Payment Terms: FOB

ZHTBS01 Top And Bottom Sides Automatic Labelling Machine

Top and Bottom Sides Automatic Labelling Machine is suitable for label lesser height of square , round , and flat bottles in the industry of foodstuff, medicine,cosmetic and so on. This machine the function is advance, easy operation, structure compact. Adopt to photoelectricity examine, PLC control, Touch screen software operation, conveyor belt, nip bottle belt are all stepless for speed adjust, label nicety; at the same time it has the function of no object no labelling, no label can revise by itself, and automatic to check. This machine can using single label, and also can using with other packing machinery for automatic produce on line.
Machine specification :

Top and bottom sides label speed	40-100BPM
Top side label speed	60-200BPM
Label out speed	3-40m/min
Label precision	±1mm
Max label width of Top side	95 mm
Max label width of bottom side	40 mm
Min length of label	10mm
Total power	2000W
Power: L/N/PE	220V 50Hz
