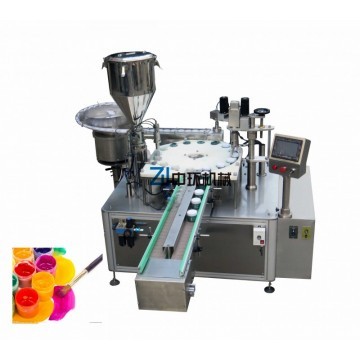

ZHG-50YL Pigment  filling and capping machine

This machine has the functions such as automatical screw type bottle feeding, bottle detecting (no bottle no filling, no bottle no cap feeding ), filling, cap feeding and capping automatically.

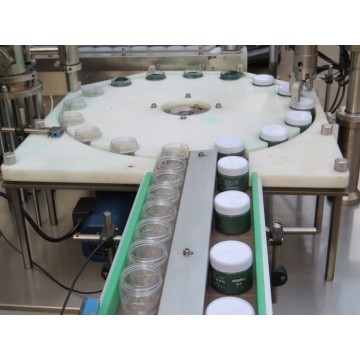

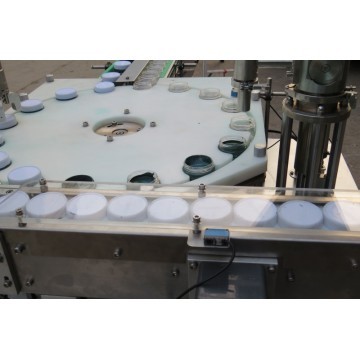

Introduction:Turnplate is intermittent movement and driven by divider with accurately postioning.Cylinder drive the piston and two filling heads fill at the same time.When the machine fill cream into the jar,meanwhile the rod spin the jar to prevent foam.According to the different jar size,it is easy to replace the turnplate.Filling parts can be dismantled and meet GMP standardThe machine is with no jar no filling function and controlled by PLC.

Applicable material:medium and high viscous cream

Filling range:10g-125g

Production capacity:40-50 jars/min.

Hopper capacity:80L(adjustable)

Power Supply:220V 50Hz

Power:4KW

Air consumption:＞ 4-5KG F/CM 100L/MIN

Dimension: 2400*1250*1800
