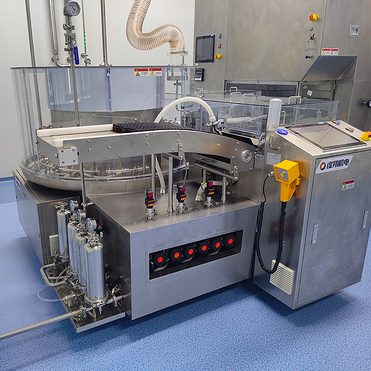

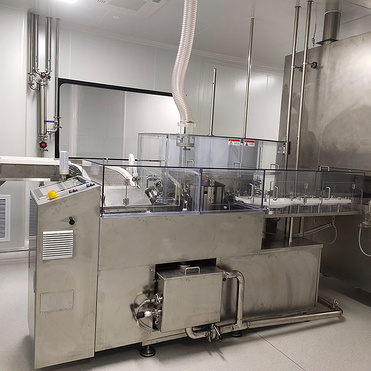

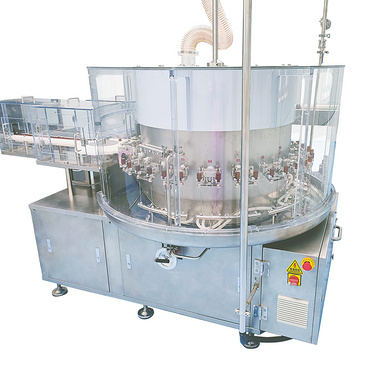

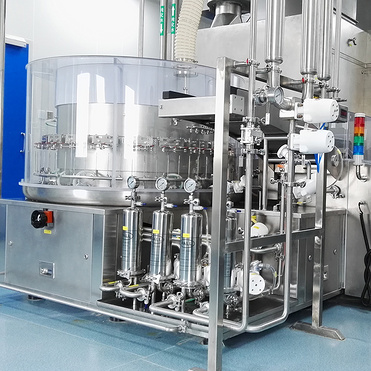

The vertical ultrasonic vial washing machine is designed for cleaning vials and is primarily composed of a feeding system, washing system, discharging system, circulation water system, piping system, and electrical control system.
It adopts a three-dimensional rotating drum design, which is reasonably and compactly arranged, occupying minimal space.
The machine's transmission components are designed for smooth operation, reducing maintenance costs.
The exterior surface of the machine is made of SS 304 stainless steel, making it easy to clean.
The cleaning process utilizes alternating internal and external wall water and air flushing techniques, with each cleaning medium being independent to avoid cross-contamination and ensure the cleaning effectiveness of the vials.
Machine Parameters:
Serial No.
Item
Parameter Description
1.
Machine Dimensions (L×W×H)
≈2335×2405×1600mm (subject to actual design)
2.
Weight
≈2800kg
3.
Power Supply
3P/AC380V/50HZ
4.
Machine Structure
Three-dimensional rotating
5.
Applicable Specifications
2ml vials
6.
Production Capacity
200 vials/min (based on national standard 2ml vials)
7.
Breakage Rate
≤0.05%
8.
Manufacturing Standards
cGMP
9.
Electrical Standards
IEC 60204-1 Safety of machinery – Electrical equipment of machines, GB/T 4728 Graphical symbols for electrical diagrams
