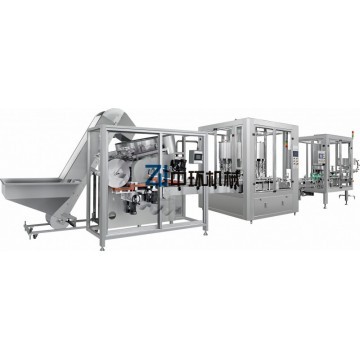

Production line for high viscosity products (Bulk bottle unscrabmler machine, filling machine, capping machine)

This production line is suitable for high viscosity products. Such as SC, EC, detergent, honey, grease, etc. This line with fast speed is applicable for bottle unscrambling, filling and capping.

Major characteristics

　　With high productivity and automation , the rotary piston machine is the latest generation of quantitative filler . The piston cylinder is totally controlled by a micro computer . The whole filling process combines mechanism ,electricity , photics and pneumatic together . It also employs internationally advanced technology of the same kind .
Thanks to the integration of mechanics and electrics , filling specifications can easily be changed by altering parameter on touch panel . Filling volume of each filling head can be adjusted respectively . The computer the has function of memorizing the related ,parameters of each packing specification , so that it can save time for the second adjustment .
During the process ,the key parts are protected by integration of mechanics and electrics . If there is anything abnormal ,it will automatically stop and alarm , then the touch screen will hint the abnormal part where it is .

　　Based on design of water-proof and pneumatic protected ,so there is no pollution .

Main technical parameters

1、Dimensions: 2400mm (length) × 2200mm (width) × 2200mm (height)
2、filling heads: 20
3、Bottle type: Diameter: φ40mm-φ120mm
4、height:：80mm-280mm
5、Packing specifications：50ml-1000ml
6、production capacity：≤12000bottles / hour (with oil as the medium)
7、measurement error：50ml-200ml≤±1ml、200ml~1000ml≤±2ml
8、with power：380V 50/60hz
9、the host power：4.5kw
10、equipped with air source：0.4Mpa~0.65Mpa clean and stable gas
