PRODUCT DESCRIPTION

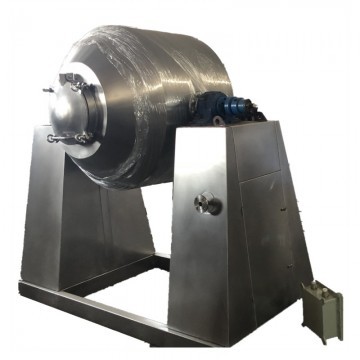

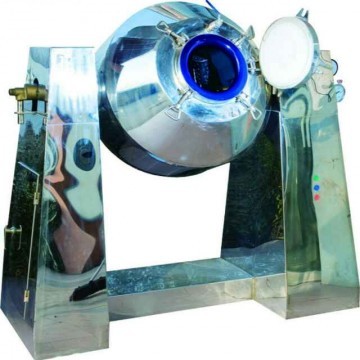

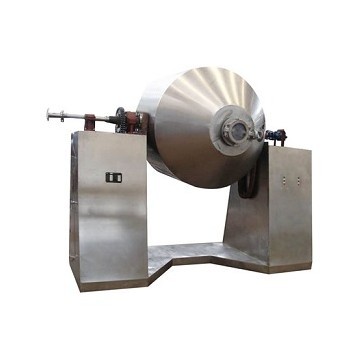

Glass lined double-conical rotary vacuum dryer is a multi-purpose machine. It is suitable for vacuum drying and mixing of powder and granular materials. It can also be used for concentration of chemical reaction solution, especially for drying materials containing toxic gases and solvents to be recovered. Double-conical rotary vacuum dryer is suitable for the raw materials that need to concentrate, mixed and dried at low temperature (for example, biochemistry) products in chemical, pharmaceutical and foodstuff industries. Particularly it is suitable for the raw materials that are easy to be oxidized, volatilized and have night heat sensitivity and is toxic and not permitted to destroy its crystal in drying process.  Automatic constant temperature control can be realized with heating by thermal oil. The temperature of operation can be adjusted from 20-160 degree centigrade. Compared to ordinal dryer, its heat efficiency will be 2 times higher.   It is easy to clean and maintenance. It is in conformity with the requirement of GMP, and can get the FDA certificate.

SPECIFICATION

Capacity: 200 to 5000 Liters     Load Capacity: 50%±10% of rated capacity Dry Capacity: 2.0 to 3.0 K/m2h     Vacuum Degree: -0.098 Mpa Max. Allowed Leakage Rate of Gas: 1330 mbar · l/s Max. Working Pressure of Jacket: 0.3Mpa   Working Temperature:  30 to 160 Deg.C Body Material: Against customized Swing Speed: OD line speed of vessel: 0.3-1.2 m/s Thickness of Lined Glass：0.8 to 2.3 mm Heating Medium: Hot water/ Low perssure steam/ Thermal oil Standard： HG/T 3682-2000 or Against customized standard
