PRODUCT DESCRIPTION

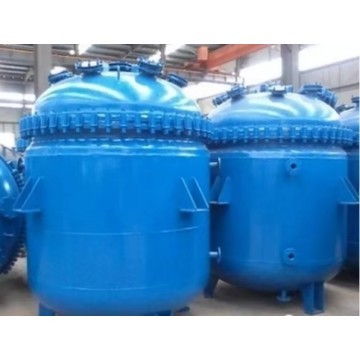

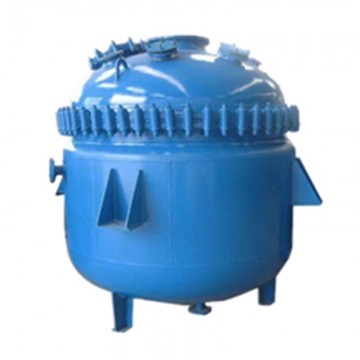

ZL series glass lining distillation tank apply in distillation process for the separation of thermodynamics and other separation means when extraction, adsorption as compared to the system without the use of Other than the solvent component, thereby ensuring without introducing new impurities. Distillation is the process of separating the components or substances from a liquid mixture by using selective boiling and condensation. Distillation may result in essentially complete separation (nearly pure components), or it may be a partial separation that increases the concentration of selected components in the mixture. In either case, the process exploits differences in the relative volatility of the mixture's components. In industrial chemistry, distillation is a unit operation of practically universal importance, but it is a physical separation process, not a chemical reaction. Distillation tank & column is an essential equipment used in distillation of liquid mixtures so as to separate the mixture into its component parts, or fractions, based on the differences in volatilities.

SPECIFICATIONS

Capacity: 300 to 3000 Liter Designed Pressure: vessel: 0.25Mpa  , Jacket: 0.6Mpa Working Temperature:  0 to 200 Deg.C Heat Exchange Area: 1.75 to 9.3 Squre Meter Thickness of Lined Glass：0.8 to 2.0mm Spark Test for Lining-glass：20KV after glass-ling, and 10KV before shipment Temperature Resistance：Chilling shock: 110 Deg.C, Thermal shock: 120 Deg.C Standard： HG/T3126-2009Or Against customized standard
