Characteristic

1、Advanced performance, high power, low noise, compact structure,?operate steadily?, easy to maintain, and has a long life span.

2、A high degree of automation. Machine can finish packing at one time from longitudinal?sealing, longitudinal cutting, transverse sealing, filling, embossing, notch cutting,?cutting?Dotted line, transverse cutting to?outputting?finished sachets.

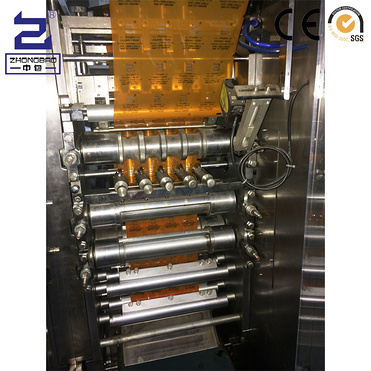

3、High precision?whole?rolling type heat sealing rollers are adopted as sealing mould. 4-sides sealing, multi-line sachets form. With high packing speed,?smooth?bag shape,?delicate?and beautiful, packaging with?high efficiency

4、Fast and convenient to adjust. It can step-less adjust pouch length without changing the mould. And can adjust the functions as longitudinal sealing, transverse sealing, filling, embossing, Dotted line cutting and transverse?cutting through man-machine interface.

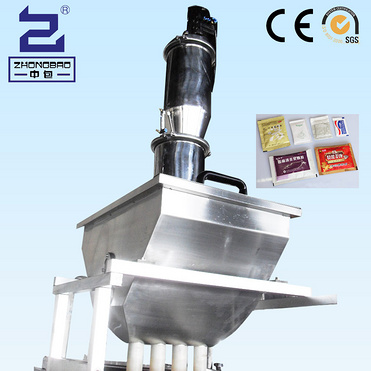

5、Accurate in measurement. Regarding to fine granular materials, designed with?swing-out?feeding?pipes,?match with triangular adjustable feeding?cups, measurement can be adjusted independently?and?with?high precise, each line’s dosage?can?be?adjusted easily and accurately.

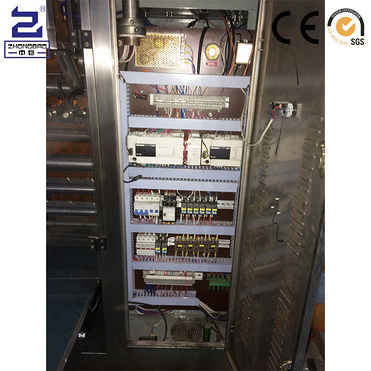

6、A PLC is used for automatic control, Each actuating mechanism?adopt servo?motor to driver, it is precise in automatic in step positioning,?reliable performance, convenient to operate, and fully automatic.

7、Photoelectric tracking system?is adopted to?ensure correct printing and with automatic counting function.

8、Adaptability of the package film. The sealing temperature?of machine is with automatic control, and with?high control accuracy (± 1C °).?Suitable for most complex film packing film in home and abroad, such as PET/AL/PE、PET/PE、NY/AL/PE、NY/PE?and so on.

9、Extra functions?set up . For example, sachet cutting can choose dotted line?knife, flat cutting knife or abnormal shape knife. Printing can choose embossing (hard batch) or ink wheel printer. According to the material properties, it?can be?extra?equipped with feeding mouth lifting mechanism, vibration?etc. and the matching of?kinds of?alarm requirements and so on.

Usage:

Suitable for packing loose, non sticky granule material in the medicine, food, daily chemical and other industry, and?automatic packing into sachets?with?measuring requirement. Such as?Chinese?medicine infusion,?oatmeal, coffee?etc. Crystalline materials?as monosodium glutamate, white sugar, salt?etc. Small shot?materials as Chinese patent drug, dryer and so on.

Main Technical Parameters:

?
