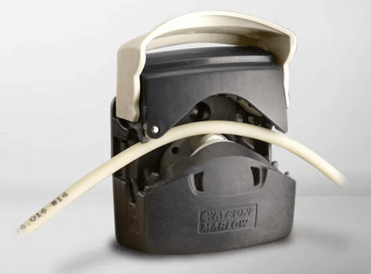

114DV single channel pumphead
The 100 series combines performance, practicality and design. With its iconic flip-top design it is an industry standard OEM product in medical device, biotechnology and diagnostic applications, and very popular in many other applications too.
Delivering accurate, repeatable and low-pulse flow rates in a compact size, the 100 series has a spring-loaded track to provide pressure control that can be set for standard and higher pressures. Pumps are highly engineered to deliver long tube life. Available in a range of colours and options including open/close sensor, rotation sensor and customised occlusion.
High accuracy and repeatable flows for single channel applications
Flow rates for up to 340 ml/min for continuous use and up to 510 ml/min for intermittent use
Highly flexible with seven tube bore sizes at 1.6 mm wall thickness
Error-free tube change takes only seconds
102R low-flow pumphead
102R low-flow pumpheads accept, without adjustment, all Watson-Marlow tubing from 0.5 mm to 4.8 mm internal diameter with 1.6 mm wall thickness. The pumphead has a spring-loaded, two roller rotor and is suitable for continuous use up to 65 rpm providing flow rates up to 106 ml/min.
Capable of pumping in either direction, 102R set to clockwise rotation will give a longer tube life. Anticlockwise rotation is suitable for pumping against greater pressures. The pumphead is available with a choice of track materials and rotor springs and is suitable for either a 6 mm or 8 mm drive shaft if mounted on users' drive.
All 102R pumpheads have a choice of mounting points and a shatterproof clear polycarbonate guard which is hinged to allow easy access for tube changing.
Snap-in connectors are also available, in place of the sprung tube clamps.
Low-flow compact pumphead
Sprung roller design for longer tube life and precise flow rates
Easy continuous tube loading
Up to 106 ml/min continuous flow
Up to 212 ml/min intermittent flow
Pumphead accepts five bore sizes of tubing for flow ranging 0.02 ml/min to 212 ml/min
