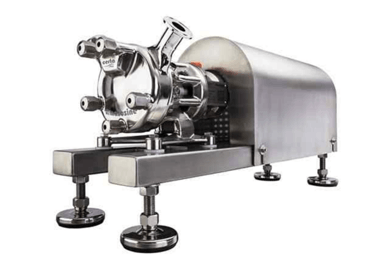

Certa Plus process pump
Drawing on considerable experience in sinusoidal pumping technology, Certa Plus has been developed by MasoSine to meet a broad range of applications for the pharmaceutical industry.
High suction capability to handle viscous fluids
Low shear, zero pulsation and self-draining
Uses up to 50 % less power than lobe and circumferential piston pump types
Easy to clean pump design certified with EHEDG Type EL Class I, EHEDG Type EL Aseptic Class I
Exposed fluid contact materials made of stainless steel 1.4435 material with electropolished surface
All fluid contact materials meet the latest FDA and USP Class VI requirements
Hygienic design
EHEDG Type EL Class I and EHEDG Type El Aseptic Class I
The type EL Aseptic Class I certification that Certa Plus carries applies to closed equipment, wet cleaned-in-place (CIP) without dismantling, it is steam sterilisable and bacteria tight. All components are made of FDA and USP Class VI certified raw materials
Removes the risk of residuals after CIP cleaning due to the unrivalled sanitary design
Reduces the amount of cleaning chemicals used, and cuts the required cleaning cycle time to a minimum
Modular seal system options:
Single mechanical seal
Single mechanical seal with flush
Double mechanical seal (which can be used with, and without an overpressure system)
Virtually pulsation free
Smooth product flow with no need for ancillary dampeners, ensuring product quality
Improves flow meter accuracy and heat exchanger efficiency
Lowest cost of ownership
Extremely simple maintenance performed in-place by operative
Patented design allows bi-directional running to pump duty fluid back to source
Certa Plus can be included in aseptic processes without the need of additional steam ports due to bacteria tight design proven by EHEDG Type EL Aseptic Class I
Energy efficiency
Requires up to 50 % less power than lobe or circumferential piston pumps
Greatly reduced electricity use means reduced carbon footprint
Higher efficiency at high viscosity increases energy savings in your most difficult applications
Low shear handling for particulates and soft solids
Improves batch consistency and final product quality
Low shear action reduces the temperature increase of the pumped liquid to a minimum which is important when circulating products
Features and benefits
Gentle product handling preserves high quality of product
Impressive suction capability
Almost zero pulsation
Outstanding energy efficient pumping principle
Bi-directional running
Only one shaft and one seal system
Different port orientations available, including self-draining position
Traceability back to base materials
