PRODUCT DISCRIPTION

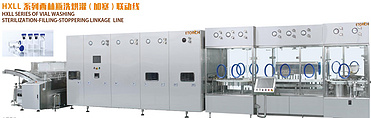

HXLL series of vial washing-sterilization-filling-stoppering linkage line

The linkage line consists of HQCLA series vertical ultrasonic washing machine, HSDH series hot air circulation sterilization tunnel, HSFG series filling and stoppering machine. The model can be used in combination or in a single machine. The linkage line can complete water spray filling, ultrasonic cleaning and water flushing (internal and external), compressed air flushing (internal and external), preheating, drying and sterilizing to remove pyrogen, cooling, filling, stoppering, capping and other processes.

This line can meet the size range from 2-30ml vials of washing, drying and sterilizing to remove pyrogen, filling and sealing requirements of the production process.

 CHARACTERISTICS

Vertical ultrasonic washing machine using ultrasonic rough washing, circulating water, WFI and clean compressed air spray and clean the container alternately. The result of cleaning clarity and visible material detection is ideal. It is the most popular cleaning machine in the world today.

The sterilization tunnel adopts the principle of hot air laminar flow and high temperature sterilization process to preheat, dry, sterilize, remove pyrogen and sterilization process. It is the most popular drying and sterilizing machine in the world.

The filling and stoppering machine adopts V shape block to transfer and reciprocating tracking filling which can ensure the vials conveying stable, sufficient time of filling and accurate filling volume by using progressive stoppering way to ensure high ratio of stoppering. It is the most popular filling and stoppering machine in the world.

The linkage production line adopts PLC control and touch screen operation, which can be used for linkage control or stand-alone operation. The control runs stably and with high automation.
