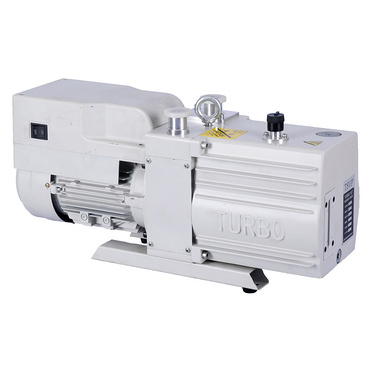

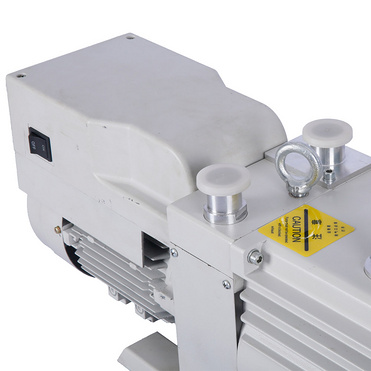

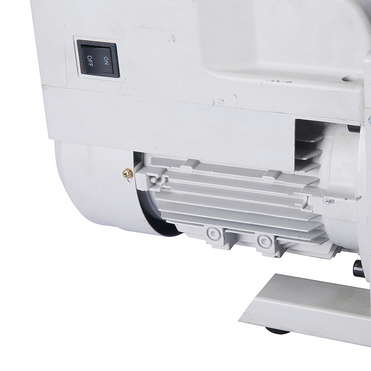

Model

T8

T16

T30

T40

T60

50Hz Nominal?Pumping?speed?M3/h(L/s)

9.2(2.6)

17.0(4.7)

31.4(8.7)

42(11.7)

63(17.5)

50Hz Pumping?speed?M3/h(L/s)

7.3(2.0)

14.8(4.1)

28.9(8.0)

39.6(11)

59(16.4)

Partial?Ultimate?Pressure(gas?ballast close)??Pa

5×10-2

5×10-2

4×10-2

4×10-2

4×10-2

Total?Ultimate?Pressure(gas?ballast close)?Pa

8×10-1

4×10-1

4×10-1

4×10-1

4×10-1

Total?Ultimate?Pressure?(gas?ballast open)?Pa

2×10-1

6×10-2

6×10-1

6×10-1

6×10-1

vapour?allowed?pressure??(Pa)

15

20

25

25

25

vapour?pumping?ability?(g/h)

100

230

800

1000

1100

Oil?Capacity(min/max)?L

0.7/1

1.4/1.8

1.5/2

3/4

4/5

Noise?Level(gas?ballast close/open)(db a)

56/58

58/60

58/60

58/60

58/60

Operation Temperature?℃

12-45

12-45

12-45

8-45

8-45

Connector

KF25

KF25

KF40

KF40

KF40

Power Supply

Single/3-ph

Single/3-ph

Single/3-ph

Single/3-ph

3-ph

Rated?Power(kw)

0.37

0.55

0.75

1.1

1.5

Dimensions?(mm)

485×185×270

540×185×270

582×185×270

660×240×350

720×240×350

weight(unfilled?with?oil)?L

21

36

40

65

75
