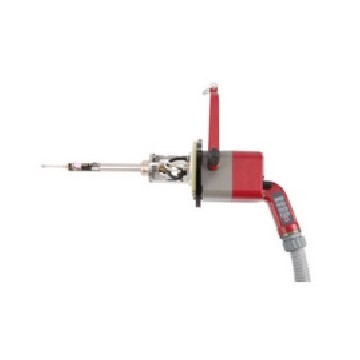

TPS25 Deep Hole Orbital Weld Head

Category:Parts and Components
Product Name:TPS25 Deep Hole Orbital Weld Head
Price(USD):0.00
Company:Kunshan Huaheng Welding Co. , Ltd.

Send Inquiry

Favorites

Similar Products

close manhole

RL Series Melting Granulator

Steel-lined four fluorine is three

quick-installation diamster-equal three-way

Steel is lined with tetrafluorin, hexaotong

quick-installation pneumatic butterfly valve

Head Stock and Tail Stock Positioner

HG (Single & Double Tambour) Turn

XJP　Plastic filter

EasyCut CNC flame cutting machine

Basic Info

Factory Location: Kunshan

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa
Sample Provided: no

Description

The torch is designed for deep hole pipe / tube plate automatic TIG welding torch design. Applicable to special tube plate form Automatic welding . Suitable for welding of carbon steel, stainless steel and other pipe / tube sheet joint Guan Pingqi joints welding pipe and 25mm in diameter and 32mm, can be used with filler wire or self melting in two ways. The machine can be programmed with iOrbital5000 welding power supply supporting the use of precision for all position welding welding results of TIG deep hole, high repeatability, can achieve the ideal effect of welding. To adapt to the special form of automatic tube plate in boiler, heat exchanger, electric power construction and chemical industries such as welding.

Performance

According to the deep hole welding invisibility, are designed automatic arc length control device, automatic correction of arc voltage and arc voltage signal acquisition through the feedback principle, in order to maintain the stability of tungsten and welding spacing, automatically adjust the arc length. Can be manually adjusted by closing the arc length automatic arc length control function;

The automatic lifting function touch the workpiece, to ensure that each welding of tungsten electrode and the workpiece height consistency;

With a special welding torch and welding torch revealed hidden function, easy insertion and welding torch;

Parameters

Welding material	Carbon steel, stainless steel
Can pipe diameter (mm)	25 or 32 (Phi Phi Phi 25 standard)
In the maximum length (mm)	230 (including the thickness)
Tube plate form	Guanpingqi
Tungsten diameter (mm)	Phi 2.4
The rotation speed (RPM)	From 0.37 to 7.39
The welding torch inclination	3 degrees
Arc length adjustment distance (mm)	Eighteen
The maximum wire feeding speed (mm/min)	One thousand and eight hundred
The wire diameter (mm)	Phi 0.8
Protective gas	argon
Cooling mode	water-cooling
The cooling flow rate (ml/min)	More than 300
Rated current	200A temporary load rate of 60%
The weight (kg)	13 (excluding cable)
Size (mm)	780 x 290 x 310
