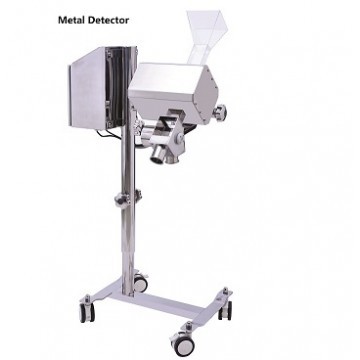

T60/30 Metal detector

Basic Information of Metal Detector

1. Detection of magnetic and non-magnetic metal impurities
2. Appropriate for tables and capsules
3. Eiection Mechanism: Metal contaminations are rejected through the Quikd Flap reject unit
4. Totally glue fixed search coil, made of stainless steel
5. Hygienic design for easy clean
6. Meets all IFS and HACCP requirements
7. Outstanding ease of operation with product auto-learn function and latest microprocessor technology

Feature ofT60/30

1. Passage Height/width：60mmX30mm
2. Sensitivity adjust：Yes
3. Max Sensitivity：Φ0.2 Fe ball ,Φ0.4 SS ball (without consideration of product effect and ambient disturbance)
4. Auto -learn function:YES
5. Type of Protection:IP 65
6. Control Unit: LCD Display ,4 Keypad for operation ,200 Product  memory ,1500event record ,
7. Product tracking: automatically compensate slow variation of product effects OPeration Voltage:230V/115VAC(+10％,-15％)
8. Electrical connection:

             Input: “resect” connection for possibility of an external reset button

             Output: 2potential-free relay switchover contact for external “metal” Indication

             Output: potential -free relay swithover contact for external “error”   Indication
