Positioners

Category:Parts and Components
Product Name:Positioners
Price(USD):0.00
Company:Kunshan Huaheng Welding Co. , Ltd.

Send Inquiry

Favorites

Similar Products

QC-4000 Pipe cutting machine(Φ12- Φ100)

TIG/PAW Wire Feeder

Steel lining PO tank and reaction kettle

Automatic pipe welding manipulator(type A)

Lab high shear mixer

Stainless steel agitator 2

Bi-Directional Mixing Tank

Observation window 2

Press Roller Welding Station

Flange sight glass

Basic Info

Factory Location: Kunshan

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa
Sample Provided: no

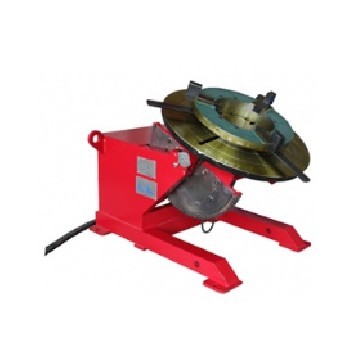

Positioner can be used in automatic welding and manual welding for butt joint, end face joint, and welding shaft, plate, barrel and others. Positioners are advantageous in compact structure, attractive appearance, light weight, easy operation and are used as welding auxiliary equipment for pressure vessel, metallurgy, electric power, chemical machinery, metal structure and other industrial applications.

The base and other welded structures effectively help remove welding stress and avoid deformation in processing;
There are 4 and more T-shape groove on the positioner table for easy monting of fixtures, such as chuck;
Be installed with spring conduction device to connect the ground wire to avoid twine of cable;
Self-lock function, allowing stopping at any position.

	HB250	HB500	HB1000	HB2000	HB3000	HB20000
Maximum Load (kg)	250	500	1000	2000	3000	20000
Overturn Speed (rpm)	0.75	0.6	0.33	0.33	0.65	0.23
Range of Vverturn Angle (°)	Manual 0-120	Moto-driven 0-135	Moto-driven 0-120	Moto-driven 0-120	Moto-driven 0-120	Moto-driven 0-90
Rotation Speed (rpm)	0.3-5.0	0.13-1.3	0.12-1.2	0.1-1.0	0.05-0.5	0.005-0.25
Table Diameter (mm)	Φ500	Φ800	Φ900	Φ1100	Φ1200	Φ3000
Maximum Eccentricity (mm)	50	150	150	150	200	200
Maximum centre of Gravity (mm)	150	200	350	300	300	500
