Drive external control interface description

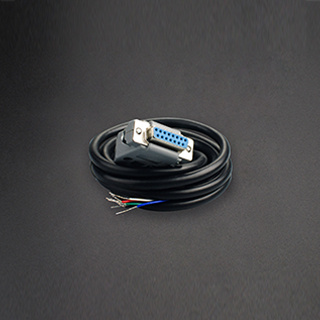

The 15-pin interface on the back of the drive is an interface for controlling the machine through external signals. First, prepare a DB15 connector (with holes) and signal wires of several different colors. Open the 15-pin female connector and solder the signal wires of different colors according to the wire sequence shown in the figure below, and use the 15-pin connector clip for the signal wire. The wires are fixed together and can be reinforced by injecting glue, and finally the shell is installed and screwed.

·Foot switch
·Foot switch is one of the external control methods of peristaltic pump besides PLC control.
·Using a foot switch to control the start and stop of the peristaltic pump can greatly improve work efficiency.

·Hose connector
·Hose connector is used to connect the peristaltic pump hose

PP hose connector, adapt to silicone tube
1pp 13# 14#
2pp 16#
3pp 25#
4pp 17#
5pp 18#
6pp 36# 73#
8pp 82#

·Filling bracket
·The stent material has high corrosion resistance and acid resistance, and can be used in high-concentration salt solutions and most organic solvent environments for a long time.
·The overall structure is stable, light and easy to clean with lotion.
·Support customized bracket assembly to meet actual needs.
