Basic Info

  • Factory Location: Ruian, Wenzhou, Zhejiang province, China

    Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa

  • Sample Provided: no

    Payment Terms: L/C

    Overview：

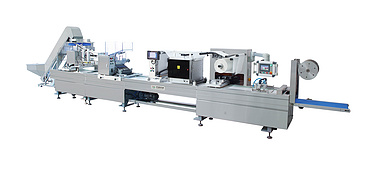

    Flat-plate Soft(Hard) Plastic Blister Packing Machine is Widely used in paper-PE blister packing for medical Appliances(Such as syringe needle, injector, pledget)
    It can continuously finish the full processing of heating in machine for PE film, Forming the blister, filling appliances, sealing, batch number printing. vertical and cross cutting and output the final product.
    This machine adapts PLC controller, human-machine interface. servo motor system,photocell register system, and optional with On line Printing system.


    Main technical parameters:



    Scope of application It can be used to package various sensitive anti-pollution items, medical equipment, Chinese and Western medicine, electronic components, chemical products, food, etc.
    production capacity 6-12 times/serving (times/minute) (1) 40 needles/time
    Packaging Materials Paper-plastic, aluminum-plastic, plastic-plastic composite film (or hard sheet below 0-2mm) that can be heat-sealed, the upper film width is 400 (500) mm, and the lower film width is 420 (520) mm.
    Maximum molding cavity size Type 420: 390×390×80mm Type 520: 475×375×50mm (L×W×D) (standard model)
    Dimensions

    DPB-420: 6478*1150*1621.5(L×W×H) (length can be customized)
    DPB-520: 6478*1270*1621.5(L×W×H) (length can be customized)
    main switch 380V/220V 50Hz 16kw
    compressed air 0.3m3/min (self-provided) Pressure: 0.6-0.8Mpa
    mold cooling Tap water or circulating water
    weight DPB-420:1700KG
    DPB-520: 2000KG
