DLSB series 5-100L low temperature coolant circulating pump

Category:Water Purification Equipment

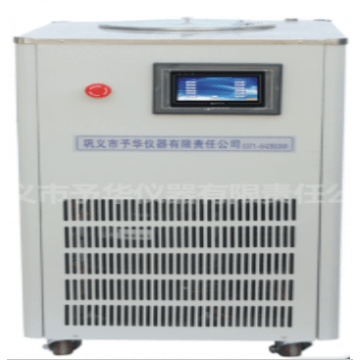

Product Name:DLSB series 5-100L low temperature coolant circulating pump
Price(USD):Interview
Company:Gongyi Yuhua Instrument Co.,LTD.

Send Inquiry

Favorites

Similar Products

Medium-sized laboratory water purification system

5.1.3 chemical, paint water

Clean steam generator

EPED - X3A - T, EPED - x3b-t

CCA-20 mini type low temperature coolant circulating pump

RO+EDI purified water system

2.2.3 EPED - X3a water machine EPED - X3

Multi Effect Distillation System

1.1.4 EPED - EQ

YSF standard type frequency conversion speed regulating double layer glass reaction kettle

Basic Info

Factory Location: Zhengzhou

Main Sales Markets: North America,Central/South America,Western Europe,Australasia,Asia
Sample Provided: no

Ordinary type low temperature coolant circulating pump
The product has been the national patent, patent number: 200730100657.6 200720089808.7
This product by the groove liquid cooling refrigerator, and then through the circulation pump cycle, based on a rotary evaporator, reactor. Cooling circulating device for carrying out cooling of heating elements of various mechanical devices.
Technical parameters of low temperature coolant circulating pump

規格型號	制冷性能			循環性能		控溫性能		工作條件			外型尺寸
	儲液容積	空載最低溫度	制冷量	流量 Q	揚程 H	調溫范圍	恒溫精度	電源	環境		長 L	寬 W	高 H
	儲液容積	空載最低溫度	制冷量	流量 Q	揚程 H	調溫范圍	恒溫精度	電源	溫度	濕度	長 L	寬 W	高 H
	(L)	(℃)	(W)	(L/min)	(m)	(℃)	(℃)	(V/HZ)	(℃)	濕度	(mm)	(mm)	(mm)
DLSB-5/10	5	-12	1213－290	35 L/min	4-6m	-10	±2	220/50HZ	25	(60-80)% 通風	520	350	720
DLSB-5/20	5	-23	1248－319			-20	±2	220/50HZ	25		520	350	720
DLSB-5/25	5	-26	1314－447			-25	±2	220/50HZ	25		520	350	720
DLSB-5/30	5	-32	1375－450			-30	±2	220/50HZ	25		520	350	720
DLSB-5/40	5	-40	1420－462			-40	±2	220/50HZ	25		520	350	720
DLSB-5/60	5	-63	1910－230			-60	±2	220/50HZ	25		430	350	960
DLSB-5/80	5	-83	1938－200			-80	±2	220/50HZ	25		430	350	960
DLSB-5/120	5	-120	2365－180			-120	±2	220/50HZ	25		540	450	1020
DLSB-10/10	10	-12	1825－820			-10	±2	220/50HZ	25		580	450	730
DLSB-10/20	10	-23	2100－780			-20	±2	220/50HZ	25		580	450	730
DLSB-10/25	10	-26	2170－780			-25	±2	220/50HZ	25		580	450	730
DLSB-10/30	10	-32	2436－820			-30	±2	220/50HZ	25		580	450	730
DLSB-10/40	10	-40	2548－980			-40	±2	220/50HZ	25		580	450	730
DLSB-10/60	10	-63	2732－310			-60	±2	220/50HZ	25		720	650	900
DLSB-10/80	10	-83	2900－230			-80	±2	220/50HZ	25		720	650	900
DLSB-10/120	10	-120	2982－200			-120	±2	220/50HZ	25		940	710	900
DLSB-20/20	20	-23	3126－950			-20	±2	380/50HZ	25		630	520	1000
DLSB-20/30	20	-32	3237－1023			-30	±2	380/50HZ	25		630	520	1000
DLSB-20/40	20	-40	3635－980			-40	±2	380/50HZ	25		630	520	1000
DLSB-20/60	20	-63	4120－510			-60	±2	380/50HZ	25		940	710	1010
DLSB-20/80	20	-83	4530－360			-80	±2	380/50HZ	25		940	710	1010
DLSB-20/120	20	-120	4889－270			-120	±2	380/50HZ	25		1000	800	900
DLSB-30/20	30	-23	3780－1150			-20	±2	380/50HZ	25		940	7100	1010
DLSB-30/30	30	-32	3960－1200			-30	±2	380/50HZ	25		940	7100	1010
DLSB-30/40	30	-40	4080－1270			-40	±2	380/50HZ	25		940	7100	1010
DLSB-30/60	30	-63	4330－680			-60	±2	380/50HZ	25		1030	810	1020
DLSB-30/80	30	-83	4679－422			-80	±2	380/50HZ	25		1030	810	1020
DLSB-30/120	30	-120	4968－330			-120	±2	380/50HZ	25		760	610	1030
DLSB-40/20	40	-23	4322－1280	70 L/min	6-8m	-20	±2	380/50HZ	25		1030	860	1030
DLSB-40/30	40	-32	4390－1300			-30	±2	380/50HZ	25		1030	860	1030
DLSB-40/40	40	-40	4510－1320			-40	±2	380/50HZ	25		1030	860	1030
DLSB-40/60	40	-63	4690－980			-60	±2	380/50HZ	25		1030	860	1030
DLSB-40/80	40	-83	4830－510			-80	±2	380/50HZ	25		1030	860	1030
DLSB-40/120	40	-120	5120－450			-80	±2	380/50HZ	25		1030	860	1030
DLSB-50/20	50	-23	8550－2170			-10	±2	380/50HZ	25		760	610	1030
DLSB-50/30	50	-32	8930－2280			-20	±2	380/50HZ	25		760	610	1030
DLSB-50/40	50	-40	10256－2300			-30	±2	380/50HZ	25		760	610	1030
DLSB-50/60	50	-63	10570－1600			-40	±2	380/50HZ	25		1030	860	1030
DLSB-50/80	50	-83	11200－1480			-80	±2	380/50HZ	25		1030	860	1030
DLSB-50/120	50	-120	11290－1260			-120	±2	380/50HZ	25		1130	840	1120
DLSB-80/20	80	-23	9738－2626	70 L/min	6-8m	-20	±2	380/50HZ	25		1000	800	1100
DLSB-80/30	80	-32	9820－2820			-30	±2	380/50HZ	25		1000	800	1100
DLSB-80/40	80	-40	10860－2830			-40	±2	380/50HZ	25		1000	800	1100
DLSB-80/60	80	-63	11380－2100			-60	±2	380/50HZ	25		1220	830	1350
DLSB-80/80	80	-83	11670－1800			-80	±2	380/50HZ	25		1220	830	1350
DLSB-80/120	80	-120	11880－1200			-120	±2	380/50HZ	25		1200	110	1300
DLSB-100/20	100	-23	11245－2821			-20	±2	380/50HZ	25		1100	900	1100
DLSB-100/30	100	-32	11380－3012			-30	±2	380/50HZ	25		1100	900	1100
DLSB-100/40	100	-40	11520－3160			-40	±2	380/50HZ	25		1100	900	1100
DLSB-100/60	100	-63	12300－2627			-60	±2	380/50HZ	25		1200	1100	1350
DLSB-100/80	100	-83	12630－2160			-80	±2	380/50HZ	25		1200	1100	1350
DLSB-100/120	100	-120	13760－1350			-120	±2	380/50HZ	25		1460	1200	1350
