Summarize:

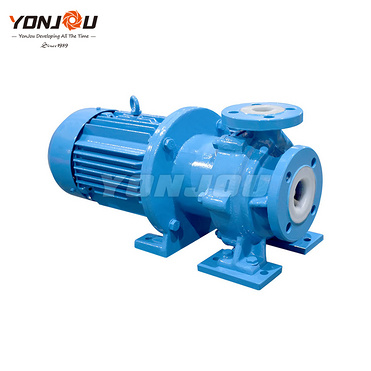

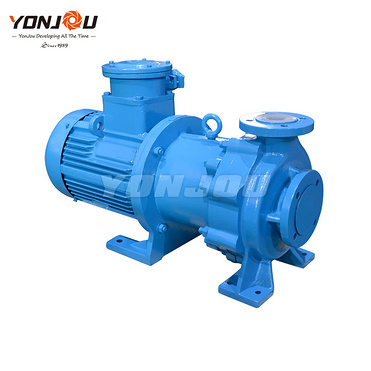

? Centrifugal structure magnetic driven pump, no shaft-sealing, non-leakage.
? Cast iron pump casing lined with PFA, FEP for chemical application to transfer?caustic soda,?sulfuric acid,?nitric acid, etc.
Product details:
Working Principle:
Centrifugal, Magnetic
Flowrate range:
1.6~100m3/h
Head range:
7~50m
Max.permissible fluid temperature:
100°C(212°F)
Material:
Cast iron lined with FEP, PFA
Power specs:
0.18~18.5kw / 110~480v / 50/60hz?
?
?Performance Data:
Model
Capacity?(m3/h)
Head ?(m)
Inlet ?(mm)
Outlet?(mm)
? NPSH ?(m)
Motor?Power?(KW)
CQB20-15-75F
1.6
7
20
15
6
0.18
CQB25-20-100F
2.5
10.5
25
20
6
0.37
CQB32-20-110F
5.5
13
32
20
5
0.55
CQB40-25-120F
6.3
15
40
25
5
0.75
CQB40-40-100F
6.3
11
40
40
5
0.55
CQB40-40-125F
6.3
17.5
40
40
3.7
1.1
CQB40-25-150F
6.3
25
40
25
3.5
1.5
CQB40-25-160F
6.3
32
40
25
3.5
3
CQB40-25-200F
6.3
50
40
25
3.5
5.5
CQB50-32-125F
12.5
20
50
32
3.5
2.2
CQB50-32-160F
12.5
32
50
32
3.5
4
CQB50-32-200F
12.5
50
50
32
3.5
7.5
CQB65-50-125F
25
20
65
50
4
4
CQB65-50-150F
20
25
65
50
4
4
CQB65-50-160F
17.5
32
65
50
4
4
CQB65-50-180F
18
38
65
50
4
5.5
CQB80-65-125F
50
20
80
65
4
7.5
CQB90-65-160F
50
32
80
65
4
11
CQB100-80-125F
100
20
100
80
4
11
CQB100-80-160F
100
32
100
80
4
18.5
?
